Lingman Precision Pneumatic Rotary Square Hole Chuck Of Lathe Dedicated Pipe Cutter

Productos

El tenedor de la herramienta del torno

Tirada de la máquina del torno

Torreta del torno

Éntrenos en contacto con

Miss. Xu

xumeixia@lmjxkj.com

+86 13776887097

Contacto ahora

Lingman Precision Pneumatic Rotary Square Hole Chuck Of Lathe Dedicated Pipe Cutter

Cuota De Producción:	1 juego
Precio:	USD 2429-7286 set
Embalaje Estándar:	Cartón de madera
Período De Entrega:	10-15 días laborables
Forma De Pago:	T/T, LC/C
Capacidad De Suministro:	500 establecidos por mes

Información de detalles

Descripción de producto

Información detallada

Lugar de origen

Porcelana

Nombre de la marca

LINGMAN

Certificación

Provided

Número de modelo

F130DF/F175DF/F245DF/F365DF

Nombre del producto:

mandril principal

Claw Stroke/Diameter:

124-357 mm

Acoplamiento máximo:

0,6-7,5 KN

Presión permitida:

0.2-0.9MPA

Velocidad límite:

100-200 rpm

Rango de sujeción:

4-362 mm

Altura central:

235-465 mm

Inercia rotacional:

1,42-31,7Kg.m²

Peso de pieza giratoria:

71-133kg

Peso total de peso:

134-531kg

Resaltar:

Pipe Cutter Rotary Square Hole Chuck

Precision Pneumatic Rotary Square Hole Chuck

Descripción de producto

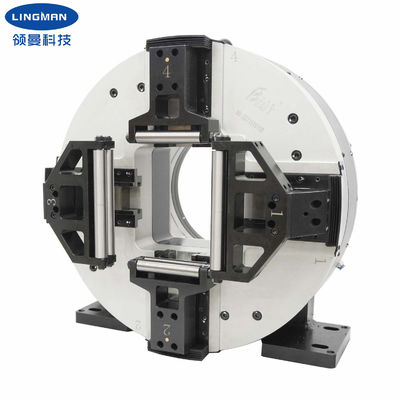

Rotary Full Stroke Pneumatic Laser Chuck for Pipe Cutting Machine

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

This model laser chuck is designed for laser pipe cutting equipment, four jaw full stroke main chuck. The chuck itself can be operated as an independent rotating spindle. After the product base is fixed, it only needs to connect the supporting motor and gear, and then connect the compressed air source to clamp the workpiece and drive the workpiece to rotate. Chuck full stroke operation, no need to adjust the position of the four jaws. The chuck adopts a fully enclosed structure with cross roller bearings. Compared with similar products on the market, the chuck has higher rotation accuracy and repetition accuracy, as well as higher gripping force.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

2. Performance Parameters

Model number	F130DF/F175DF/F245DF/F365DF
Jaw stroke/diameter	124-357mm
Max. clamping force	0.6-7.5KN
Allowable pressure	0.2-0.9MPa
Clamping range	4-362mm
Central height	235-465mm
Rotational inertia	1.42-31.7Kg.m²
Rotating part weight	71-133kg
Whole unit weight	134-531kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

3. Dimensions

Lingman Precision Pneumatic Rotary Square Hole Chuck Of Lathe Dedicated Pipe Cutter 0

Lingman Precision Pneumatic Rotary Square Hole Chuck Of Lathe Dedicated Pipe Cutter 1

4. Advantages

a. Full stroke design

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.

b. Professional design team work with you.

c. Professional QC team to guarantee the high quality.

d. Providing OEM & ODM service.

6. Production Line

Etiquetas:

Tirada neumática del torno del metal de 4 mandíbulas,

tirada rotatoria neumática de 160m m,

4.5KN 100m m tirada independiente de 4 mandíbulas
